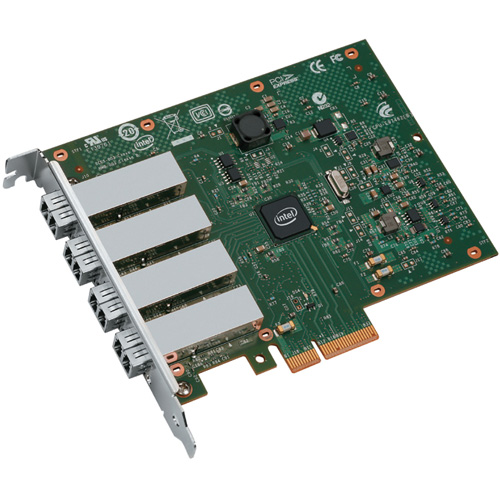

Intel 82580 Chipset PCI-Express x4 Quad-Port SFP Fiber Gigabit Ethernet Server Adapter

Intel 82580 Chipset PCI-Express x4 Quad-Port SFP Fiber Gigabit Ethernet Server Adapter

Product #: SNIC-1G-F4-82580
Availability: In Stock
Leadtime: Usually ships in 2 days
Warranty: Lifetime
Price: $220.00

Features

  • Intel 82580 Quad MAC/PHY Ethernet controller
  • Peak bandwidth 8 Gb/s on PCI Express bus
  • Handles 4 Gigabit per second traffic load
  • PCI-e x4 Gen 2
  • Four SFP Transceivers
  • Multi Mode Fiber (SX), Single Mode Fiber (LX) and Copper (RJ45) support
  • Low profile form factor
  • 8 W maximum power
  • RoHS Compliant
  • EMC, FCC Class A, UL (Safety) Certifications
  • Digital Optical Monitoring support (DOM) according to the industry-standard SFF-8472

Specifications

  • PCI Express rev2.0 Gen 2
  • Transmit and receive IP, TCP and UDP checksum offloading capabilities
  • Transmit TCP segmentation
  • IPv6 Offloading
  • Advanced packet filtering
  • IEEE 802.1q VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
  • IEEE 1588 (Pre standard) per packet time stamping
  • Supports multiple TX & RX queues, Virtual Machine Data queues (VMDq)
  • Supports jumbo frame size of 9.5 KB
  • IEEE 802.3ab, 802.3u, 802.3x compliant
  • Extensive power management

Environmental

  • Operating Temperature: 0 to 55ºC or 32 to 131ºF
  • Operating Humidity: 5 to 95%
  • Maximum power consumption without Transceivers: 8 W
  • Airflow: 200 lf/m
